赞皇县YD-008温室育苗设施移动苗床的结构
赞皇县YD-008温室育苗设施移动苗床的结构

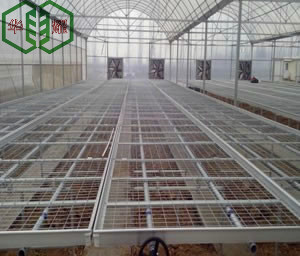

移动苗床-移动式苗床的结构：移动苗床主要是有苗床网、滚动轴、支架、苗床边框、手轮、横支撑、斜拉杆以及其它连接件组合而成。我厂生产的育苗苗床-育苗移动苗床可用于中药材、珍贵药材的育苗培育。移动苗床的常规高度为0.7m，宽度为1.7m，长度可以根据温室大棚的尺寸定制。网孔方正，镀锌均匀，焊接牢固，耐腐蚀能力强，性价比非常高。
移动苗床-移动式苗床的特点：

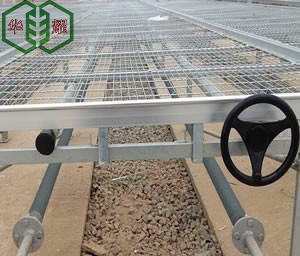

1.手动驱动，操作简单，移动方便。苗床边框为铝合金材质，可向左、右移动，任意两个苗床之间可产生0.6m的作业通道，能使温室的使用面积达80%左右。
2.主体框架和苗床网都采用热镀锌工艺，能在潮汐环境下长期使用。
3.种植操作方便，设有限位防范设置，放置由于偏重引起的倾斜问题。
育苗移动苗床-生态蔬菜育苗移动苗床的规格：
苗床设计宽度1.4m,长度38m,高度0.75m,每跨设4组,总计24组
苗床立柱、横梁采用40×30×1.5mm的矩形管,床面四周采用铝合金边沿,网片所有材料都采用热镀锌处理。
材质:优质低碳钢丝
丝径：4.0mm /3.0mm
网孔：120 mm×25mm 130mm×30mm 50mm×50mm
尺寸：1.9m×4m
Mobile seedbed - Characteristics of mobile seedbed:
Structure of moving seedbed of yd-008 greenhouse seedling facility in Zanhuang County
Mobile seedbed - Mobile seedbed structure: the mobile seedbed is mainly composed of seedbed net, rolling shaft, bracket, seedbed frame, hand wheel, transverse support, inclined rod and other connecting parts. The seedling bed - seedling moving bed produced by our factory can be used for the seedling cultivation of traditional Chinese medicine and precious medicinal materials. The conventional height and width of mobile seedbed are 0.7m and 1.7m respectively, and the length can be customized according to the size of greenhouse. Square mesh, uniform galvanizing, firm welding, strong corrosion resistance and high cost performance.
Mobile seedbed - Characteristics of mobile seedbed:
1. Manual drive, easy to operate and easy to move. The frame of the seedbed is made of aluminum alloy, which can be moved to the left and right. A 0.6m working channel can be generated between any two seedbeds, which can make the use area of greenhouse reach about 80%.
2. The main frame and seedbed net are hot-dip galvanized, which can be used in tidal environment for a long time.
3. The planting operation is convenient, and there is a limit to prevent the device from tilting due to the overweight.
Mobile seedbed for seedling raising - Specifications of mobile seedbed for ecological vegetable seedling raising:
The design width of the seedbed is 1.4m, the length is 38m and the height is 0.75m. There are 4 groups in each span, with a total of 24 groups
The column and crossbeam of seedbed are made of 40 × 30 × 1.5mm rectangular tubes. The edge of aluminum alloy is used around the bed surface. All materials of mesh are hot-dip galvanized.
Material: high quality low carbon steel wire
Wire diameter: 4.0 mm / 3.0 mm
Mesh: 120 mm × 25 mm 130 mm × 30 mm 50 mm × 50 mm
Size: 1.9m × 4m
